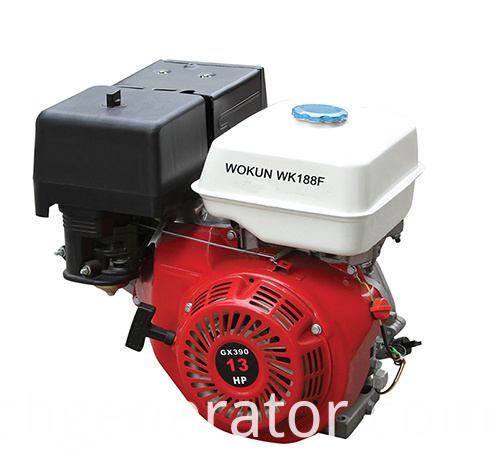

Motor de gasolina Kobal 13HP (WK188) para bomba de água
- produtividade:
- 800 PCS/Day
- Lugar de origem:
- Zhejiang, China
- Habilidade da fonte:
- 800 PCS/Day
- Mr. Catherine Zhou
Informação básica
Modelo: WK188
Descrição do produto
GX390, motor de gasolina 13HP
Sistema de alerta de óleo.
Comece com arranque elétrico ou retrocesso manual manual.
Baixo consumo de óleo, baixo nível de ruído e poluição.
Com certificado CE, SONCAP, ISO9001: 2000.
Estamos confiantes no fornecimento de produtos de boa qualidade a preço razoável.
Ansioso por uma cooperação longa e frutuosa e estável com você.
Entre em contato comigo se você tiver algum interesse, obrigado.
| Engine Model | GX160 | GX200 | GX270 | GX340 | GX390 |
| Type | OHV, Tilt, Single cylinder, 4-stroke, Forced air-cooled, gasoline engine | ||||
| Max. Power(HP) | 5.5HP/3600rpm | 6.5HP/3600rpm | 9HP/3600RPM | 11HP/3600rpm | 13HP/3600rpm |
| Displacement(cc) | 163CC | 196CC | 270CC | 338CC | 389CC |
| Ignition Model | Non-contact transistorized ignition (TCI) | ||||
| Starting System | Recoil start | Recoil start | Recoil start | Recoil start | Recoil start / Electric start |
| Fuel tank capacity | 3.6L | 3.6L | 6L | 6.5L | 6.5L |
| Bore*Stroke(mm) | 68*45mm | 68*54mm | 77*58mm | 82*64mm | 88*64mm |
| Net Weight(kg) | 16 | 16.5 | 25 | 31 | 35 |
| Dimension(mm)(L*W*H) | 385*330*350mm | 385*330*350mm | 440*365*425mm | 450*390*440mm | 465*410*455mm |
| 20GP' container | 620PCS | 620PCS | 272PCS | 272PCS | 272PCS |
