Página inicial > Lista de Produto > Bomba de água de gasolina > Bomba de água de gasolina de 3 polegadas (WP30) com motor Honda 6.5HP

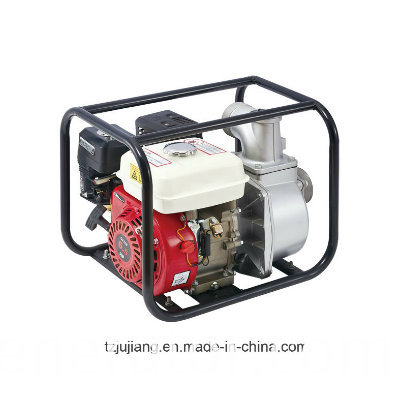

Bomba de água de gasolina de 3 polegadas (WP30) com motor Honda 6.5HP

produtividade:
800 PCS/Day
Lugar de origem:
Zhejiang, China
Habilidade da fonte:
800 PCS/Day
  • Mr. Catherine Zhou

Informação básica

Modelo:  WP30

Descrição do produto

Nº de modelo: WP30 Estrutura: Tipo de bomba de pistão: Bomba de lâmina Teoria: Bomba centrífuga Peso: 25kg Marca: JUJIANG Origem: Zhejiang, China Material: Ferro fundido Potência: Petróleo Aplicação: Bomba de bomba de irrigação agrícola: 3inch Bomba Motor: Honda 6.5HP Engine Especificação: CE SONCAP Código HS: 8413709910
3inch Gasoline Water Pump (WP30) with 6.5HP Honda Engine

Bomba de água a gasolina de 3 polegadas
Motor: motor JJ168 6.5HP refrigerado a ar e 1 cilindro de 4 cilindros OHV
Deslocamento: 196cc
Capacidade do depósito de combustível: 3.6L
Capacidade de óleo: 0.6L
Sucção: 7m
Elevador de cabeça: 30 m
Saída: 60m3 / h
Tamanho: 513x383x415mm
Peso líquido: 25 kg
20GP carga: 330pcs





Com certificado CE, SONCAP, ISO9001: 2000.
Estamos confiantes no fornecimento de produtos de boa qualidade a preço razoável.
Ansioso por uma cooperação longa e frutuosa e estável com você.
Entre em contato comigo se você tiver algum interesse, obrigado.
Model WP15 WP20 WP30 WP40
Outlet Size(mm) 40 50 80 100
Inlet Size(mm) 40 50 80 100
Speed (rpm) 3600 3600 3600 3600
Q. max(m3/h) 27 21 60 80
H. max (m) 20 30 30 25
Suction(m) 7 7 7 7
Maximum Power Output (HP) 2.5 5.5 6.5 11
Engine Model JJ154 JJ168F JJ168-1 JJ188
Bore x Stroke (mm) 52x38 68x45 68x54 88x64
Displacement (cc) 80.7 163 196 389
Compresslon Ratlo 7.7: 1 8.5: 1 8.5: 1 8.0: 1
Maximum Power Output 1.7kw/4000rpm 4.0kw/3600rpm 4.8kw/3600rpm 9.5kw/3600rpm
Recommended Power Using 1.65kw/3600rpm 3.4kw/3600rpm 4.0kw/3600rpm 8.0kw/3600rpm
Maximum Torque 4.2N. M/3200RPM 10N. M/2500RPM 11N. M/2500RPM 21N. M/2500RPM
Ignition System Non-contact transistorized(TCL)
Engine type Single cylinder, Air-cooled, 4-stroke, 25 inclined
Starting System Recoil and hand-operated Recoil and hand-operated/Eletric start
Air Cleaner semi-dry oil bath type semi-dry oil bath type
Fuel tank Capacity (L) 1.6 3.6 3.6 6.5
Fuel Consumption(L) ≤ 450g/kw/h ≤ 395g/kw/h ≤ 395g/kw/h ≤ 395g/kw/h
oil Capacity (L) 0.37 0.6 0.6 1.1
Net Weight(kg) 18/39.6 27/59.4 30/66 47103.4
Dimensions LxWxH(mm) 450x340x355 480x370x415 520x390x460 615x445x52
